Split Selected Links

<< Click to Display Table of Contents >>

Split Selected Links

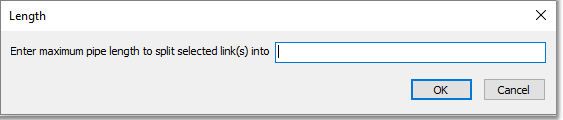

The Model Data > Model Topology > Split Selected Links > Segments based on maximum distance function splits all selected links in the model into shorter links with maximum specified length that can be set in the following ensuing dialog box:

WAD_UserGuide_SplitPipeLengthBox



The Model Data > Model Topology > Split Selected Links > Fixed number of segments function splits all selected links in the model into the number of links set in the following ensuing dialog box:

WAD_UserGuide_SplitPipeSegmentsBox
